Vertical Machine Center CNC Vertical Lathe Turning Center Type Width of bed mm 200 mm

Name: Vertical Machine Center CNC Vertical Lathe Turning Center Type Width of bed mm 200 mm
Brand: TIMAC TIMEWAY
Price: 30 USD

Wholesale Vertical Machine Center CNC Vertical Lathe Turning Center Type Width of bed mm 200 mm from china suppliers

Type : VERTICAL

Max. Length of Workpiece (mm) : 500

Machining Capacity : Medium Duty

Width of bed (mm) : 200 mm

Spindle Motor Power(kW) : 22

No. of Spindles : Single

Number of Axes : 2

Travel (X Axis)(mm) : 550 mm

Travel (Z Axis)(mm) : 650 mm

Place of Origin : China

Brand Name : TIMAC TIMEWAY

Model Number : VLK800E / VLK1250E

Voltage : 220V/380V

CNC Control System : FANUC

Tool Post Stations : 4

Weight (KG) : 6000

Warranty : 1 Year

Key Selling Points : Automatic

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Max, length of workpiece : 500mm

Machine Type : Lathe Machine CNC

Name : cnc vertical lathe

Product name : torno cnc vertical

Main motor power : 22

Keyword : torno cnc vertical turning lathe machine

Max, torque of worktable : 10

Worktable speed range : 2-320

Number of tool station : 4

CNC system : SIEMENS 808D

Condition : New

Spindle Bore(mm) : 100

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining

Showroom Location : Egypt, Turkey, Romania

Core Components : PLC

Max. Spindle Speed (r.p.m) : 2000 r.p.m

Max. Turned Length (mm) : 800

Marketing Type : Other

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $30,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Vertical CNC Lathe

Vertical Machine Center CNC Vertical Lathe Turning Center Type Width of bed mm 200 mm

Summary

1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features.

2. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials.

Products Description

SPECIFICATION	UNIT	VLK800E	VLK1250E
Max. swing diameter	mm	950	1250
Max. tuming diameter	mm	800	1250
Max, height of workpiece	mm	800	1000
Max, weight of workpiece	kg	2000	5000
Main motor power	kw	22	30
Worktable diameter	mm	800	1010
X-axis travel	mm	-20-550	-20~800
Z-axis travel	mm	650	650
CNC system		SIEMENS 808D		SIEMENS 808D
Machine weight	kg	8500	11000
Machine dimensions (LxWxH)	cm	430x238x429	478x257x440
Chip conveyor		Chain type	Chain type

Feature：

Realize strong cutting on the structure performance, the worktable overweight load, machine high dynamic and static stiffness, all movement safety and stability, long service life and high processing efficiency.

GSK ,

Electric tools turret,

Electronic handwheel,

Lubrication system,

Cooling system,
Work lamp,

Pilot lamp,

Protection guard,

Heat exchanger,

Leveling blocks & bolts,

Tools & tool-box,

Operation manuals.

FANUC CNC system,

SIEMENS CNC system,

Air conditioner,

Chain type chip conveyor.

Machine Details

===================================

>> Worktable uses integrated, highrigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.

===================================

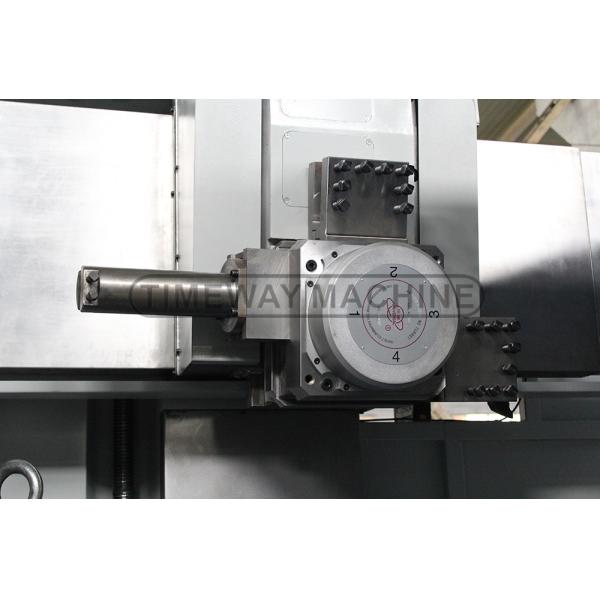

>> Four station electrical tool-post: high positioning accuracy, large clamping force, large loading capacity, stable and reliable. The unique dovetail cutter holder, more accurate positioning, greater clamping force.

===================================

>> Customers can choose FANUC, SIEMENS, or KND, other CNC systems.

===================================

>> According to special requirements, the whole machine cover, chip conveyor。

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:

Roundness: less than 0.01mm;

Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:

Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.

Comprehensive testing parts (only for CNC lathe):

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.

Positive Comments From Customers

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
