CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg

Name: CNC Camshaft Grinding Machine for Roundness OD 15um and Max workpiece weight 150kg
Brand: TIMAC
Price: 50 USD

Wholesale CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg from china suppliers

Type : CNC camshaft grinding machine

CNC or Not : CNC

Condition : New

Place of Origin : China

Brand Name : TIMAC

Voltage : 380V 50Hz

Dimension(L*W*H) : As actual situation

After-sales Service Provided : Engineers available to service machinery overseas

Color : According to per customer's need

Center height : 180mm

Max. workpiece weight : 150kg

Wheel peripheral velocity : 35m/s

Wheel spindle speed : 1100rpm

Roundness(O.D) : 1.5um

Surface roughness : Ra0.32um

Ginding lenght and diameter : Customizations

CNC system : Taiwan SYNTEC CNC system or others

Wheel size : 600*75*305mm

Max. Grinding Length : 1000mm

Weight : As actual situation

Certification : CE ISO

Max. Grinding Diameter : 320mm

Power : 21.475kw

Packaging Details : Wood case or wooden pallet

Port : China port

Supply Ability : 200 Set/Sets per Year

Price : $50,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

CNC Camshaft(Crankshaft) Grinding Machine

QMK-200H QMK-320B QMKE-200H QMKE-320B

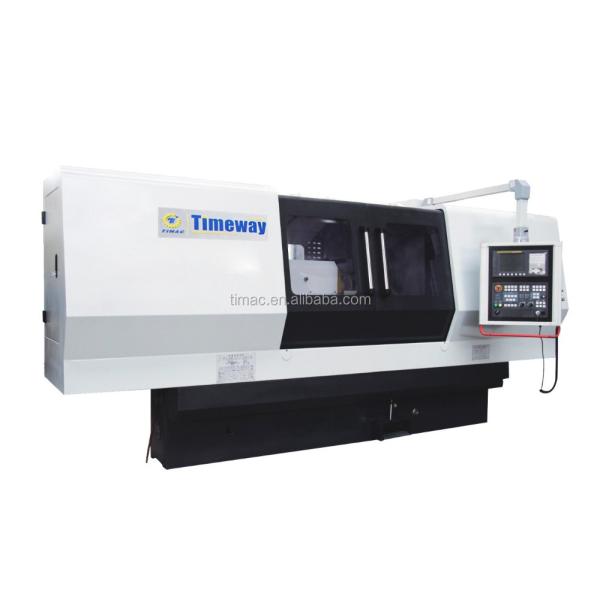

Main Outlook

CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg

Main Performances

Main Functions and Features

1. This series machine is the ideal processing equipment of automobiles, motorcycles and other engine camshaft, with high efficiency, good accuracy, simple operation, high cost, enabling one person to operate more than one.
2. Using Taiwan SYNTEC CNC system (other systems can also be configured according to the custom, such as FANUC or SIEMENS CNC system).
3. Wheel frame using high-speed hybrid spindle assembly, with high rotation precision, rigidity and other characteristics.
4. Using proprietary CNC grinding cams software.
5. Configure a separate electrical box, tank and filtration tank.
6. Wheel motor adopts AC frequency adjustment device, that can basically achieve constant linear speed grinding.

Main Accessories

Wheel perphery dresser
Wheel hub
Balancing arbor
Open-type steady rest
Wheel extractor
Magnetic separator

Extra Accessories

Wheel balancing stand
Diameter measuring instrument

Specifications List

Technical Parameters

Specifications	Units	QMK-200H500 QMKE-200H500	QMK-320B1000 QMKE-320B1000
Dia. to be ground	mm	Φ8-Φ200	Φ8-Φ320
Max. length to be ground	mm	500	1000
Center height	mm	135	180
Distance between centers	mm	500	1000
Headstock center		Morse 4#	Morse 5#
Tailstock center		Morse 4#	Morse 4#
Max. workpiece weight to be ground	kg	30	150
Wheel size	mm	Φ40050Φ203	Φ60075Φ305
Wheel peripheral speed	m/s	35	35
Wheel spindle rotation speed	rpm	1100	1100
Min. pulse amount in X-axis	mm	0.001	0.001
Min. pulse amount in Z-axis	mm	0.001	0.001
Roundness	um	1.5	1.5
Dia. uniformity in the longitudinal section	um	5	5
Surface roughness	um	Ra0.32	Ra0.32
Total motor power	kw	10.825	21.475
Longitudinal servo motor power	kw	1.6(6N.m)	3.9(15N.m)
Transverse servo motor power	kw	1.6(6N.m)	3.9(15N.m)

Notes: QMK series and QMKE series max. difference: QMK series adopts full protection shield; QMKE series adopts semi-protection shield.

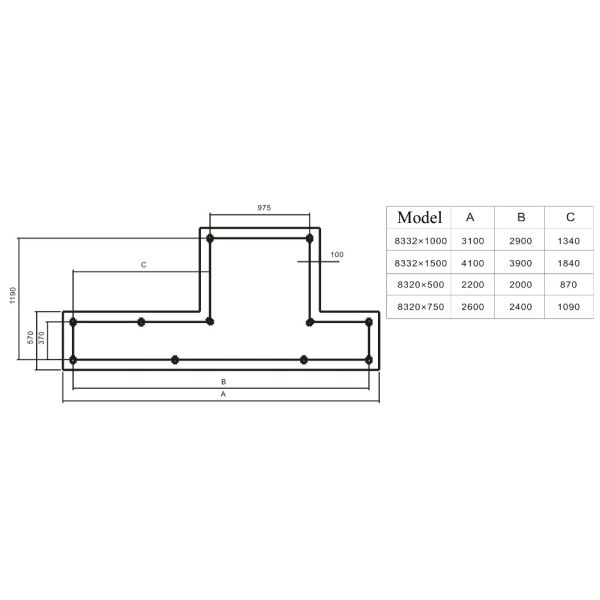

Foundation Drawing

The foundation depth depends upon the soilproperties, but it should be less than 400mm
