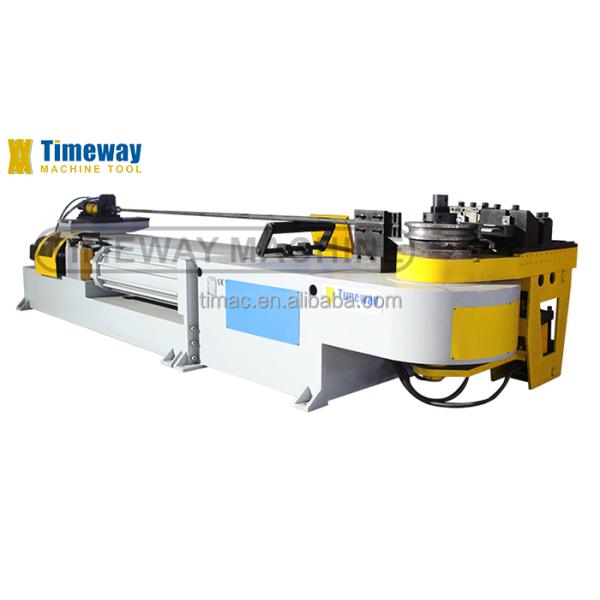

CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications

Product Categories
Zhengzhou Timeway Machine Tool Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications

  • 1
  • 2
  • 3

Material / Metal Processed : ALLOY, Brass / Copper, Carbon steel, Stainless steel, Aluminum

Condition : New

Machine Type : bending machine

Bending Radius (mm) : 75 - 850

Max. Bending Angle (Deg) : 185

Bending Precision (Deg) : ±0.05

Place of Origin : China

Brand Name : TIMEWAY

Automation : Automatic

Extra Services : Machining

Power (kW) : 22

Weight (KG) : 12000

Warranty : 1 Year

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works

Key Selling Points : Automatic

Showroom Location : Argentina, Romania, Uzbekistan, Malaysia, Australia, Turkey, Germany, Viet Nam, Brazil, Peru, Indonesia, Russia, Thailand

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Pump, Gear, PLC, Engine, Other, Gearbox, Other

Type : Hydraulic Bending

Model : CDW27Y - 159 x 14

After Warranty Service : Video Technical Support

Material : Stainess Steel

Color : Optional

Warranty period : 1 year

Bending Angle range : 0-190mm

Function : Steel Metal Bending

Motor power : 22kw

Packaging Details : in pallet

Port : China Port

Supply Ability : 100 Set/Sets per Month

Price : $47,000.00/sets >=1 sets

MOQ : 1 set

Contact Now

Products Description
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
Mechanical features
PLC programmable controller is adopted, which can set multiple bending angles, high stability, no contact, high stability, low failure rate, and easy maintenance.

The Unit Recommended to Use:
Auto parts (brake hose, bumper, muffler, seat),motorcycle manufacturing, bicycle industry, fitness equipment, air conditioning and refrigeration, steel furniture, bathroom equipment and other industries.
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
Model
Unit
CDW27Y-159x14
Max. bending pipe OD×wall thickness
mm
Φ159× 14
Min. bending radius
mm
R75
Max. bending radius
mm
R850
Max. effective distance of Mandrel
mm
5800
Max. Bending Degree
°
185°
Max. Bends for Each Tube

16piece
Max. hydraulic pressure
Mpa
14Mpa
Hydraulic system control

Electromagnetic valve
Oil tank capacity
L
300
Main motor power
kw
22
Overall dimensions (L×W×H)
mm
7000×2200×1700
Machine weight
kg
12000
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
Interactive PLC touch screen
System diagnostics function
Clockwise bending direction
Fully hydraulic clamping on clamp die and pressure die
Level-way hydraulic clamping
Bending Axis-Driven by Cylinder
Feeding Axis-Manual
Rotating Axis-Manual
Touch screen control 16 types bending angle
CE electrical cabinet
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
Why Choose Us
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
CDW27Y 159 x 14 DW Single Hydraulic Pipe Bending Machine for Heavy-Duty Applications
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
